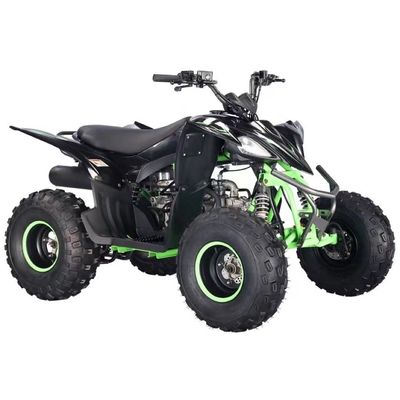

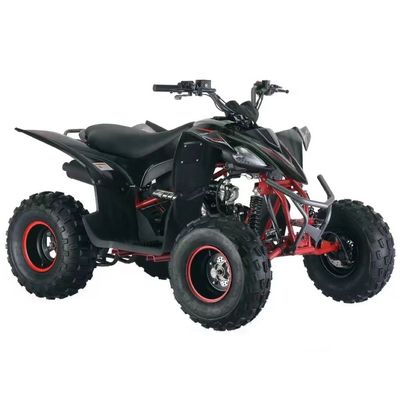

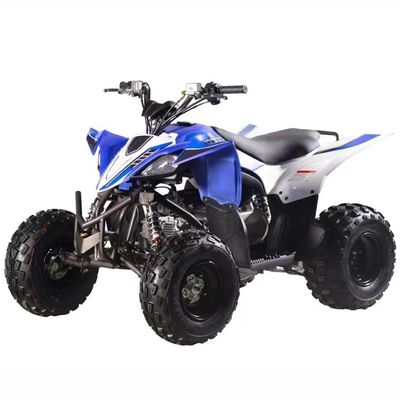

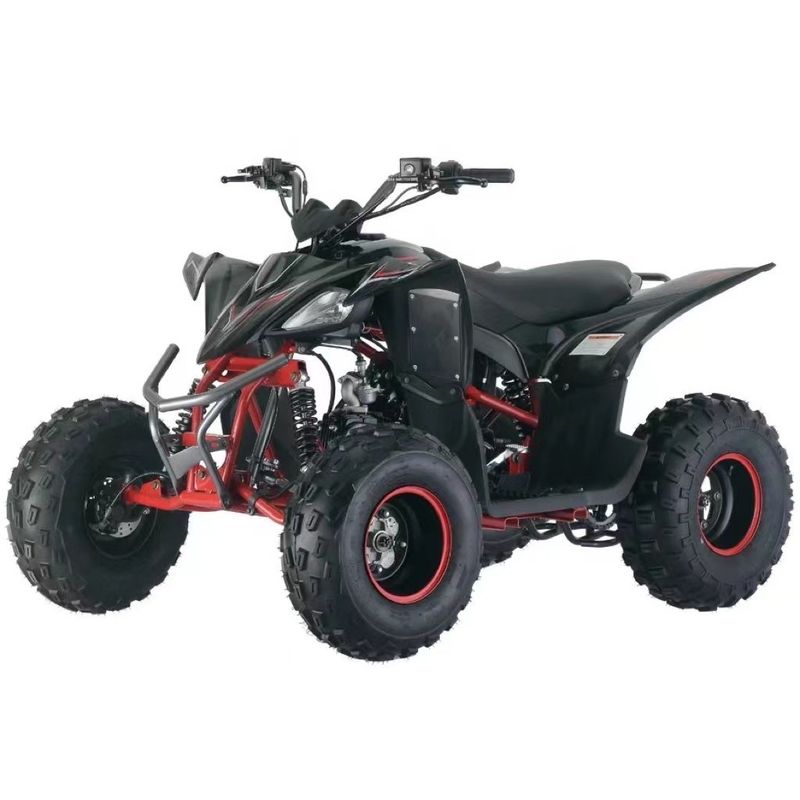

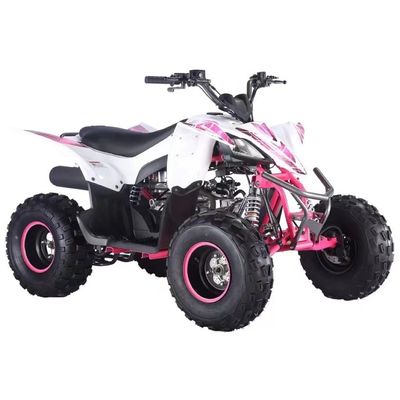

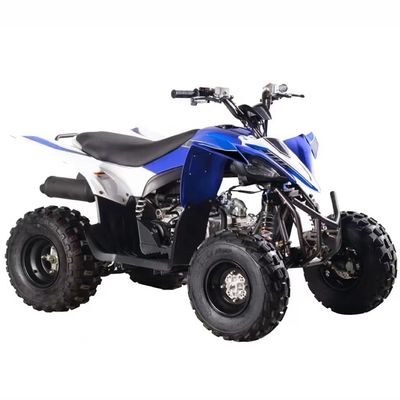

2WD Driving Type 125cc Four Wheeler ATV Bike with Chain Drive Transmission System
Product Details:
| Place of Origin: | Zhejiang, China |
| Brand Name: | Aotong |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 pieces |
|---|---|
| Price: | $555.00/pieces 10-49 pieces |
|
Detail Information |
|||
| Fuel Tank Capacity: | ≤10L | Maximum Torque(Nm): | ≤20Nm |
|---|---|---|---|
| Wheelbase: | 1000-1400mm | Brake System: | Front Disc+Rear Dsic |
| Minimum Grand Clearance: | 100-150mm | Tire Size: | 18*9-8 |
| Curb Weight: | ≤100kg | Dimension: | 1530*930*950mm |
| Maximum Speed: | ≤50Km/h | Driving Type: | 2WD |
| Differential Lock: | Unequipped | Grade Ability: | ≥25° |
| Cylinder Number: | 1 | Fuel: | Gas / Diesel |
| Displacement: | 125CC | Transmission System: | Chain Drive |
| Engine Type: | 4-Stroke | Power: | > 1000W |
| Voltage: | 12V | Transmission Type: | Automatic |
| Engine: | 110cc/125CC | Colors Available: | Customzied Supported |
| Transmission: | Chain Transmission | Brake: | Hydraulic Disc Brake |
Product Description
Engine: | 125cc single cylinder, 4 strokes, air cooled |
Max. Power: | 5.8K.W/7,500rpm |
Max. Torque: | 8.8N.M/5,500rpm |
Transmission: | Automatic, F/N/R / 3F/N/R |
Driving: | Chain drive |
Suspension: | Front: Independent single swing arm |
Rear: Swing arm type, mono oil damper | |
Wheel: | Front: AT18*7-8 |
Rear: AT18*9-8 | |
Brake: | Front: Dual hydraulic disc brake |
Rear: Hydraulic disc brake | |
Dimension: | 1,540*980*1,050mm |
Seat Height: | 740mm |
Ground Clearance: | 220mm |
Wheelbase: | 1,030mm |
Net weight: | 125 KGS |
Max speed: | 50KM/H |
Fuel capacity: | 6.5 L |
20FT FCL | 30 PCS |
40HQ FCL | 80 PCS |
Q1. What is the MOQ of your products?
A: It's 5 pcs.
Q2. What is your terms of payment?
A: Generally speaking T/T bank wire 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance. For LCL delivery, 100% payment advanced is required. We can negotiate if you have special requirements for payment.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 20 to 30 working days after receiving your advance payment. The specific delivery time depends on the items and the amount of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. Do you provide OEM service?
A: Yes we had been OEM supplier for around 10 years, we accept customize parts, graphics, package etc.
Q7. Do you test all your goods before delivery?
A: Yes, every single unit 100% tested before delivery
Q8. How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit .
A: It's 5 pcs.
Q2. What is your terms of payment?
A: Generally speaking T/T bank wire 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance. For LCL delivery, 100% payment advanced is required. We can negotiate if you have special requirements for payment.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 20 to 30 working days after receiving your advance payment. The specific delivery time depends on the items and the amount of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. Do you provide OEM service?
A: Yes we had been OEM supplier for around 10 years, we accept customize parts, graphics, package etc.
Q7. Do you test all your goods before delivery?
A: Yes, every single unit 100% tested before delivery
Q8. How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit .
Want to Know more details about this product
