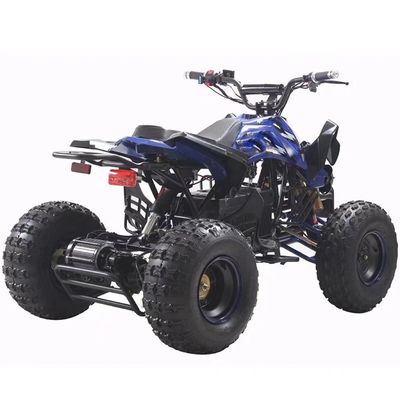

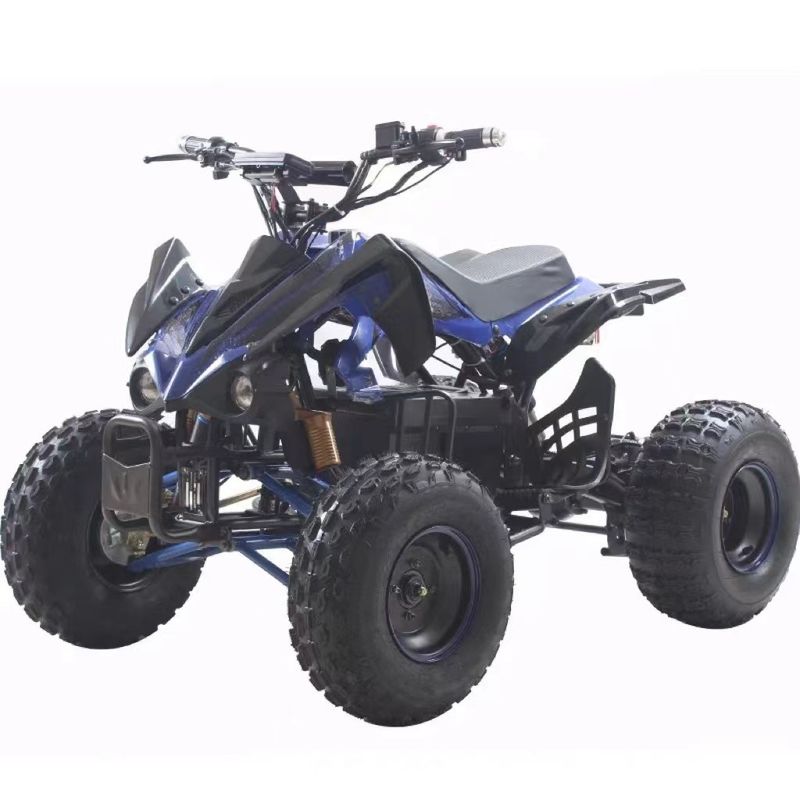

Electric 4 Wheel Kids Quad Bike ATV with 1000W 48V/60V Shaft Drive Brushless Motor
Product Details:
| Brand Name: | Aotong |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 pieces |
|---|---|
| Price: | $565.00/pieces 5-29 pieces |
|
Detail Information |
|||
| Maximum Torque(Nm): | 40-60Nm | Wheelbase: | 600-1000mm |
|---|---|---|---|
| Brake System: | Front Disc+Rear Dsic | Minimum Grand Clearance: | 150-200mm |
| Maximum Speed: | ≤50Km/h | Driving Type: | 2WD |
| Differential Lock: | Equipped | Charge Time(h): | 5-7h |
| Grade Ability: | ≥25° | Driving Mileage: | ≤30km |
| Transmission System: | Shaft Drive | Power: | > 1000W |
| Voltage: | 48V | Colors Available: | Customzied Supported |
| Transmission: | SHAFT DRIVE | Brake: | Disc |
Product Description
MOTOR： | 750W 48V/1000W 48V/1200W 60V/1500W 60V BRUSHLESS MOTOR |
BATTERY： | 48V/60V 20AH LEAD-ACID BATTERY |
TRANSMISSION： | AUTO CLUTCH WITHOUT REVERSE |
FRAME MATERIAL： | STEEL |
FINAL DRIVE： | SHAFTE DRIVE |
WHEELS： | 16X8.0-7 |
FRONT & REAR BRAKE SYSTEM ： | FRONT & REAR HYDRAULIC DISK BRAKES |
FRONT & REAR SUSPENSION： | HYDRAULIC INVERTED FORK AND REAR MONO SHOCK |
FRONT LIGHT： | HEADLIGHT |
REAR LIGHT： | / |
DISPLAY： | / |
MAX SPEED： | 30-40KM/H (3 SPEED LIMIT: 35KM/H, 20KM/H, 8KM/H) |
RANGE PER CHARGE： | 25-30KM |
MAX LOAD CAPACITY： | 85KGS |
SEAT HEIGHT： | 770MM |
WHEELBASE： | 930MM |
MIN GROUND CLEARANCE： | 160MM |
GROSS WEIGHT： | 133KGS |
NET WEIGHT： | 115KGS |
BIKE SIZE： | 145X92X91CM |
PACKING SIZE： | 129*76*61CM |
QTY/CONTAINER 20FT/40HQ： | 36PCS/108PCS |
Q1. What is the MOQ of your products?
A: It's 5 pcs.
Q2. What is your terms of payment?
A: Generally speaking T/T bank wire 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance. For LCL delivery, 100% payment advanced is required. We can negotiate if you have special requirements for payment.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 20 to 30 working days after receiving your advance payment. The specific delivery time depends on the items and the amount of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. Do you provide OEM service?
A: Yes we had been OEM supplier for around 10 years, we accept customize parts, graphics, package etc.
Q7. Do you test all your goods before delivery?
A: Yes, every single unit 100% tested before delivery
Q8. How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit .
A: It's 5 pcs.
Q2. What is your terms of payment?
A: Generally speaking T/T bank wire 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance. For LCL delivery, 100% payment advanced is required. We can negotiate if you have special requirements for payment.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 20 to 30 working days after receiving your advance payment. The specific delivery time depends on the items and the amount of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. Do you provide OEM service?
A: Yes we had been OEM supplier for around 10 years, we accept customize parts, graphics, package etc.
Q7. Do you test all your goods before delivery?
A: Yes, every single unit 100% tested before delivery
Q8. How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit .
Want to Know more details about this product
